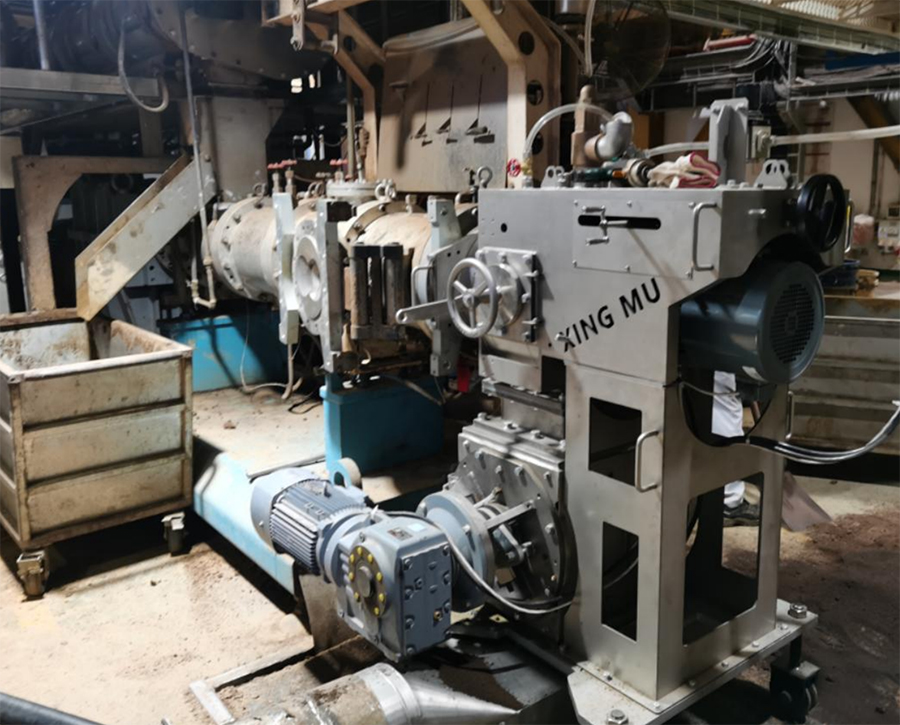

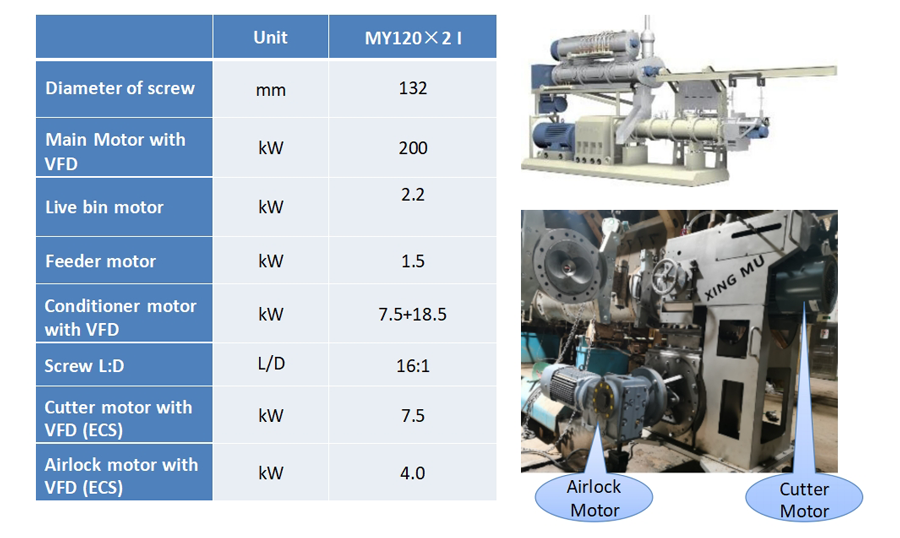

Equipment configuration and main parameters

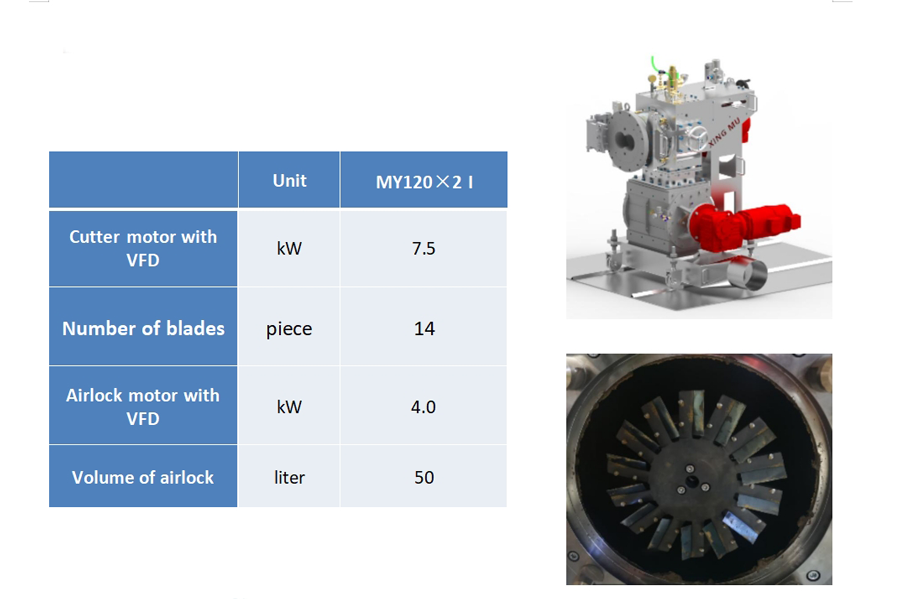

Expansion Control System (ECS)
Main improvements in this test
Improve the structure of the conditioner to increase the conditioning time and the uniformity of the conditioning.
Adjust the operating parameters of the conditioner to increase the conditioning time.
Adjust the operating parameters of the extruder.
Adjust the aspect ratio of the template.

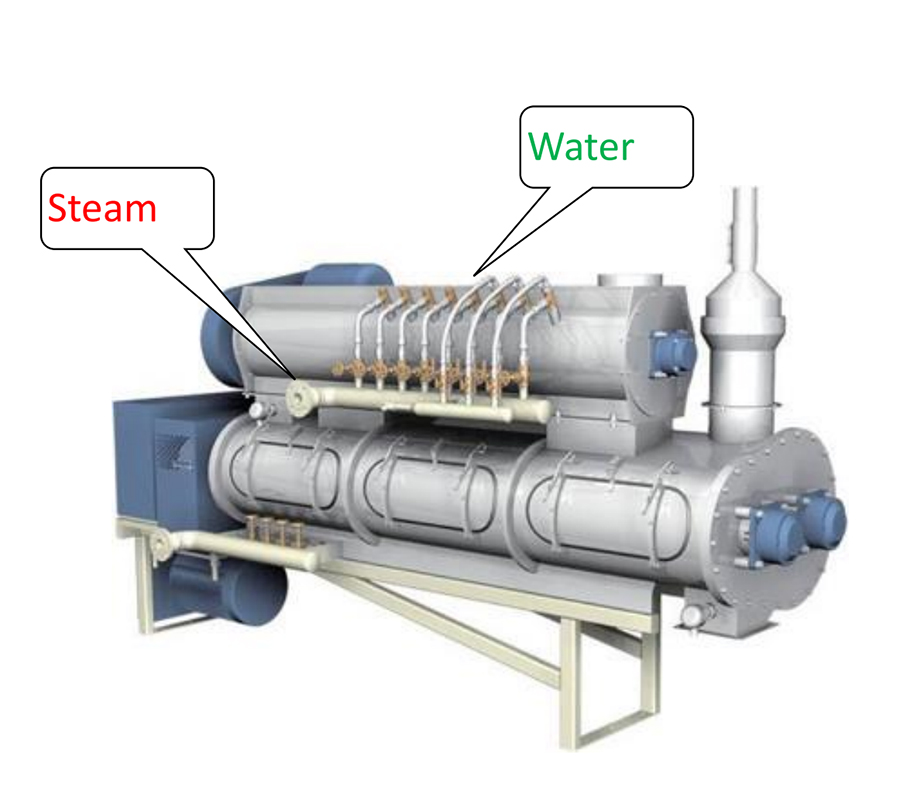

Conditioner system

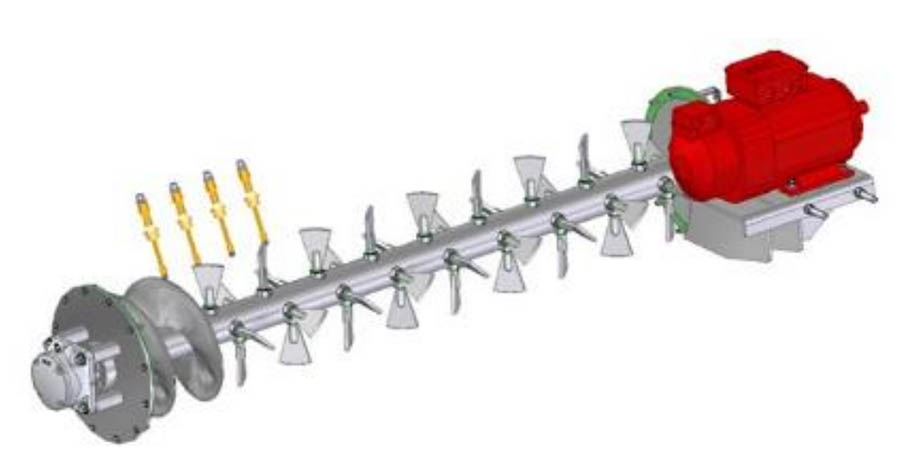

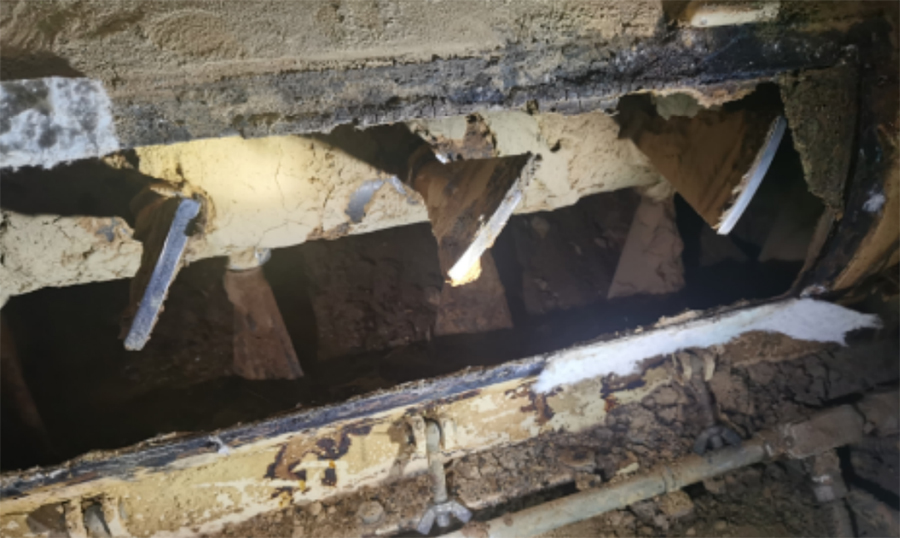

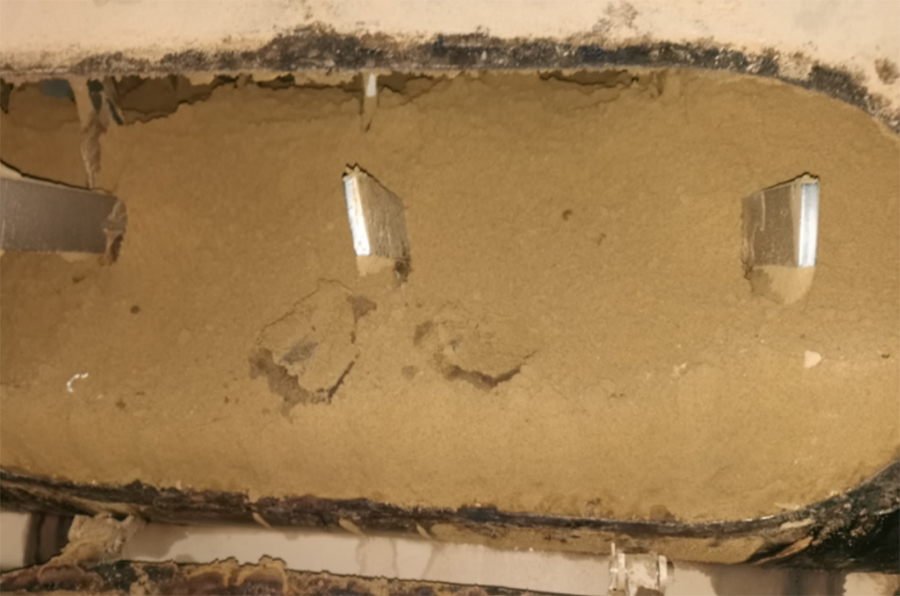

Adjust the paddles of the upper single-axis conditioner to increase the filling degree
The paddles of the discharge port (3 groups of 12 pieces) are changed from the original forward push to the reverse push of 45 degrees

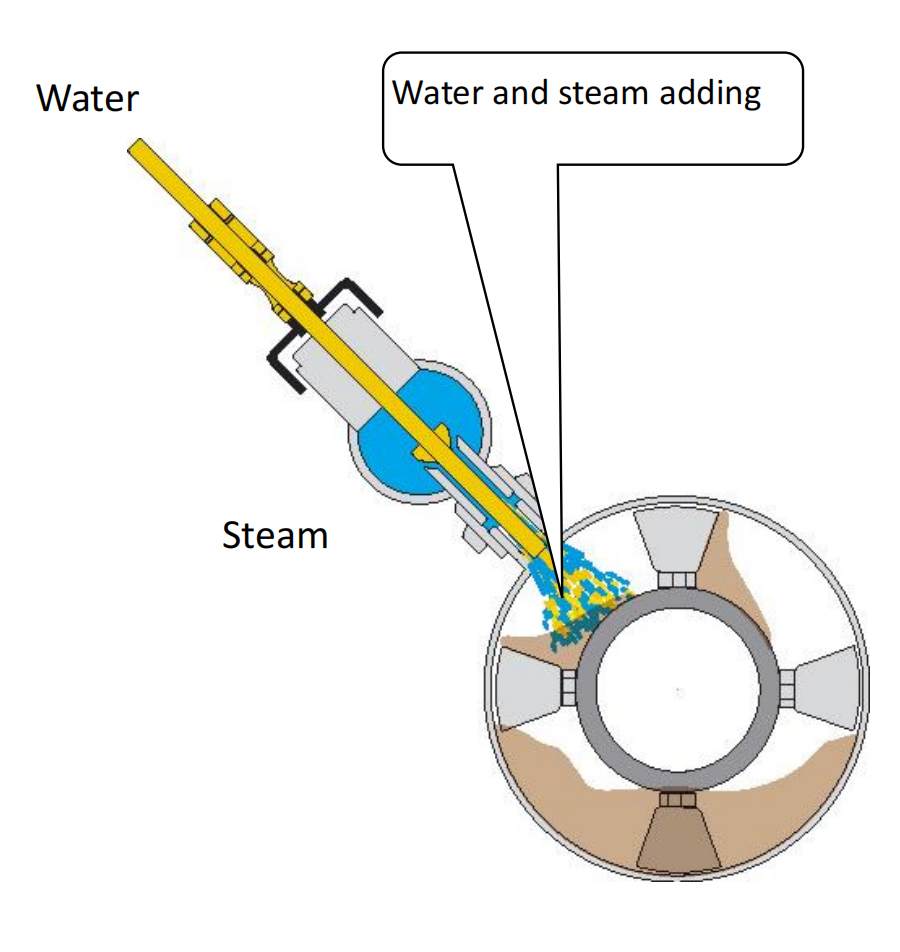

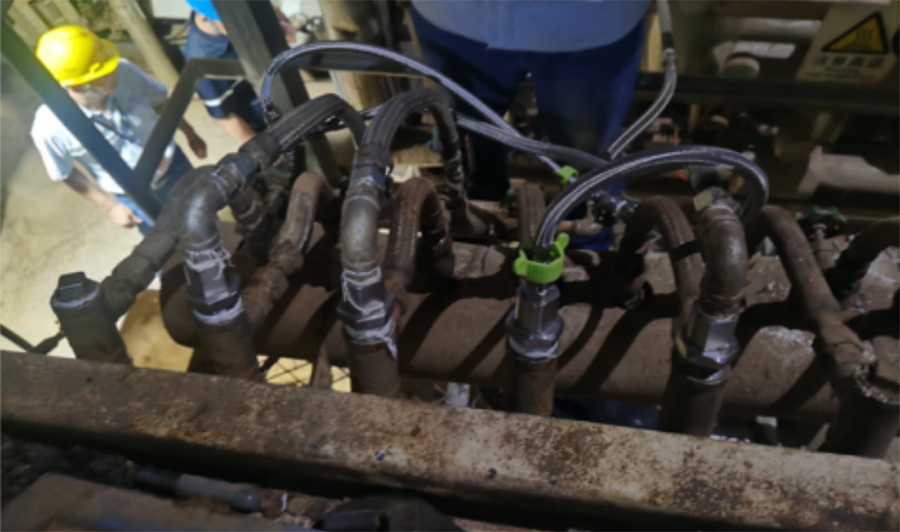

The number of water adding nozzles is increased to 4 , improve the uniformity of water addition
The number of water addition nozzles is increased to 4, improving the uniformity of water addition

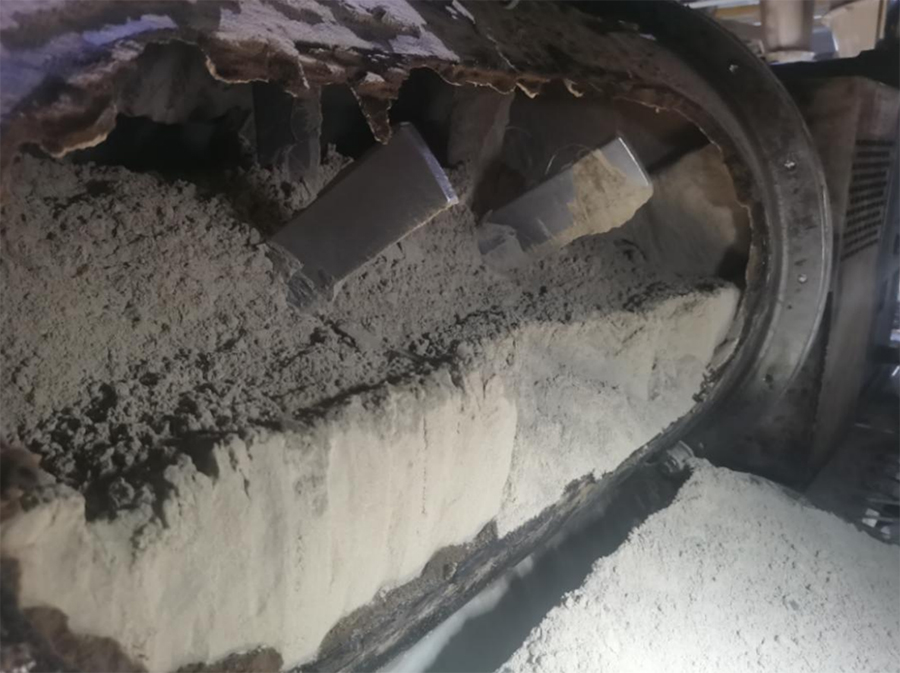

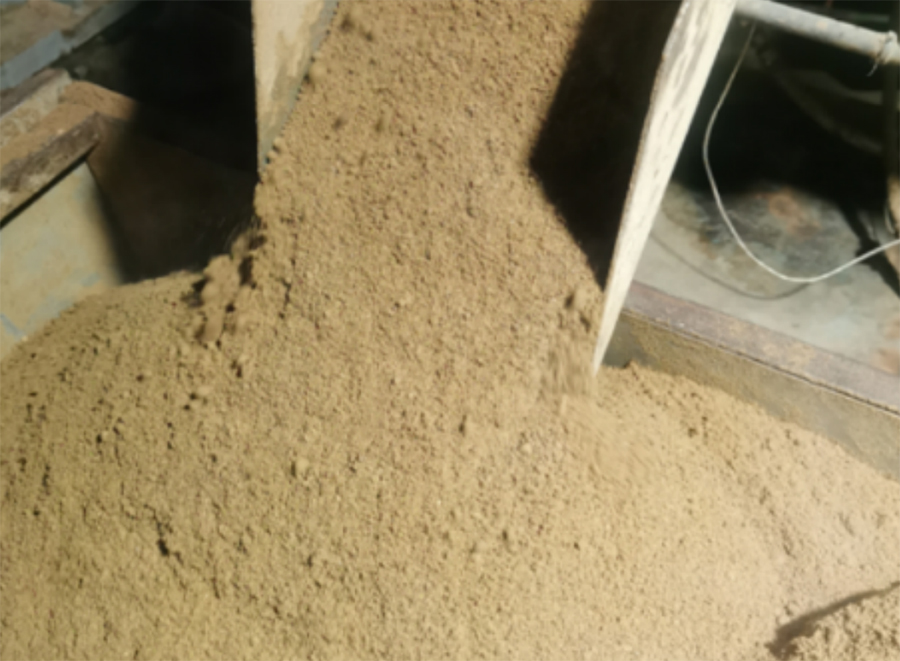

Before improvement: poor conditioning uniformity

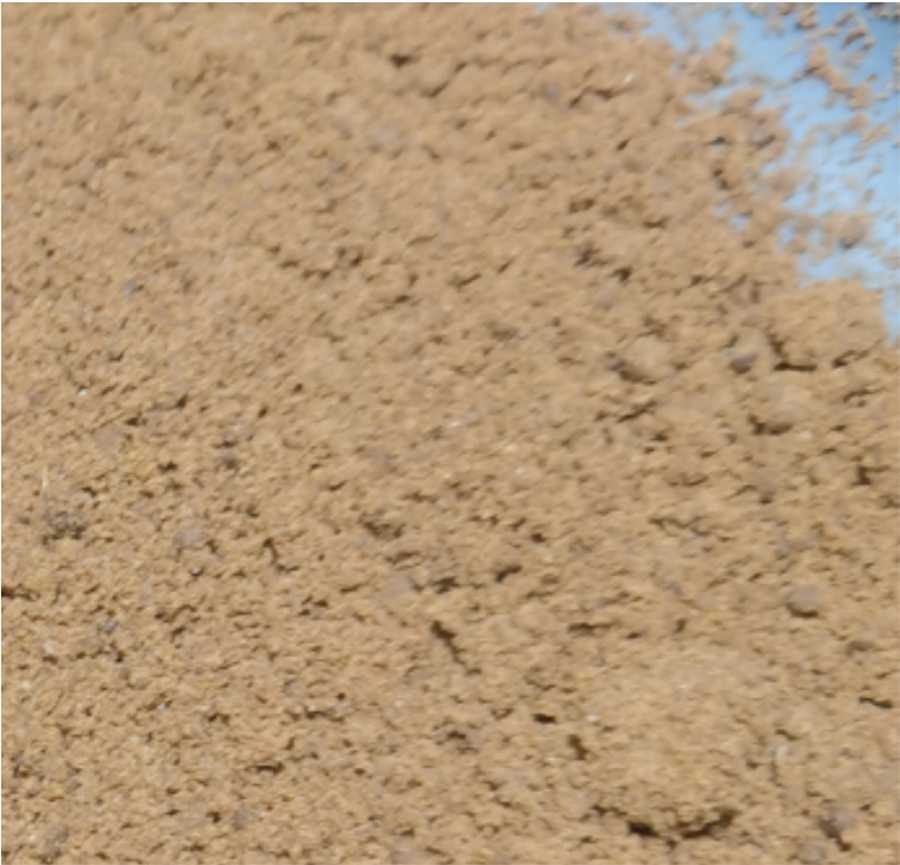

After improvement: improved conditioning uniformity
Double-axis conditioner: through the adjustment of frequency conversion, increase the filling degree of materials and improve the conditioning time
The total conditioning time is increased by about 30s

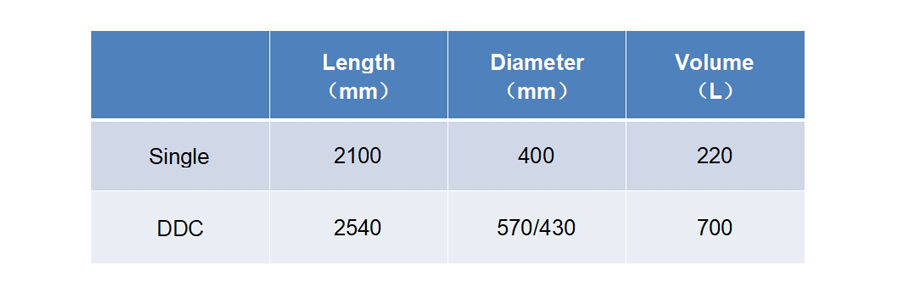

Fill% of single conditioner is 25%
Fill% of DDC is 55%
The total conditioning time is increased from the original 120s to about 180s

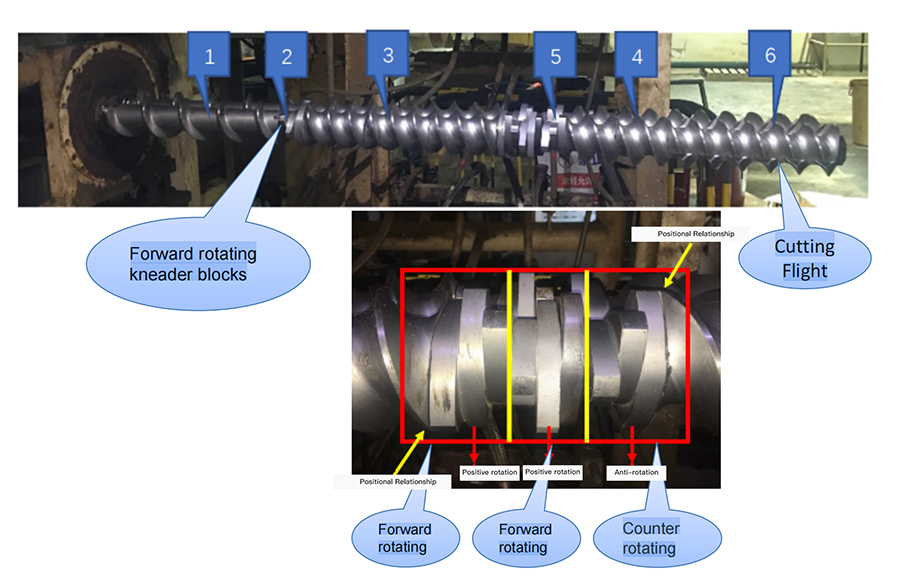

The screw configuration has not changed

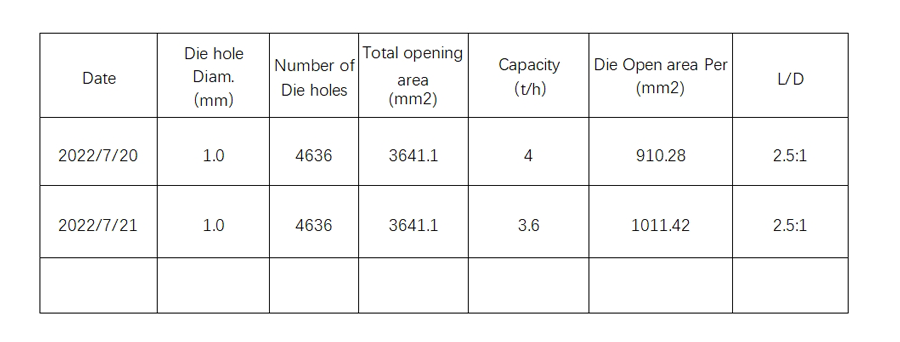

Mold: aspect ratio changed from 3 to 2.5

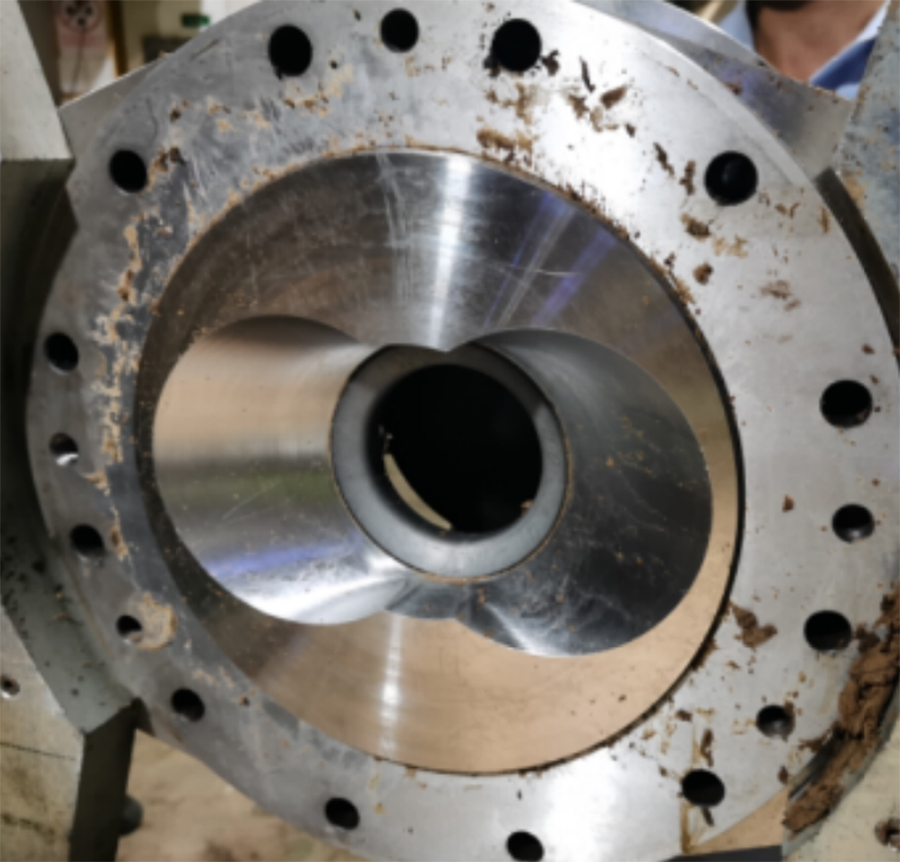

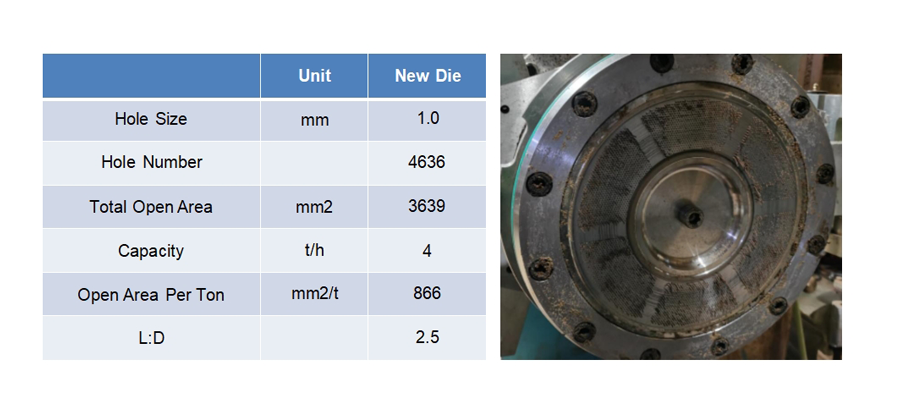

Die plate & Pressure ring
Die plate：Φ1.0×4636
Size of Pressure ring：Φ 80mm

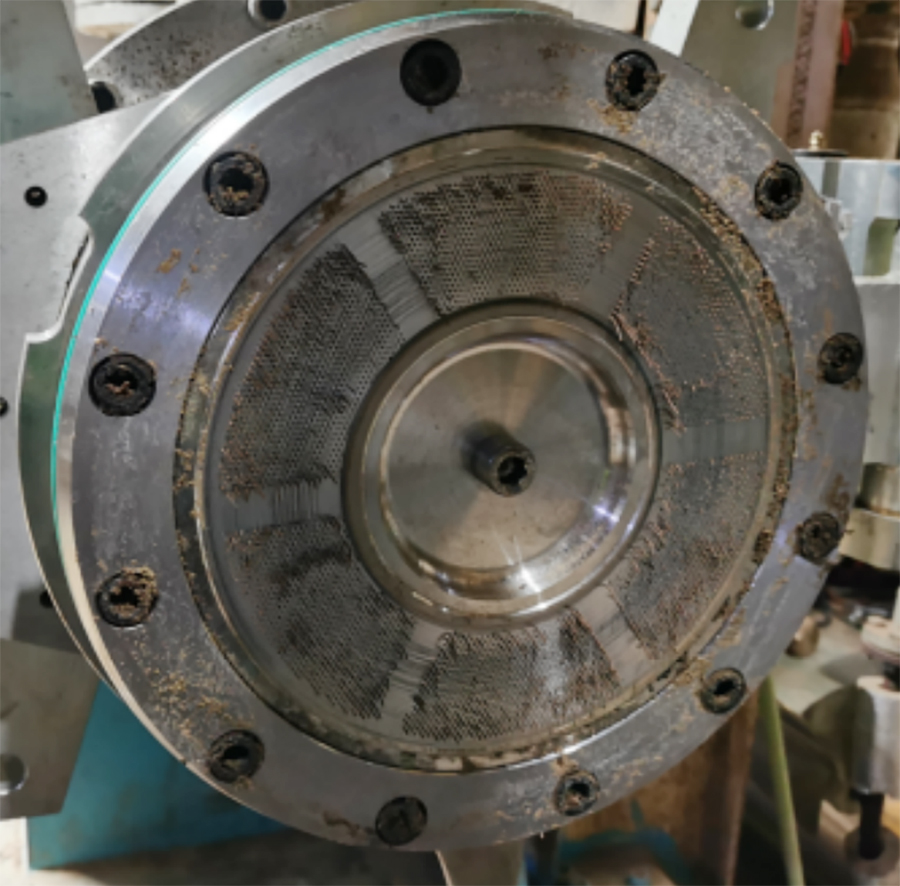

Die plate

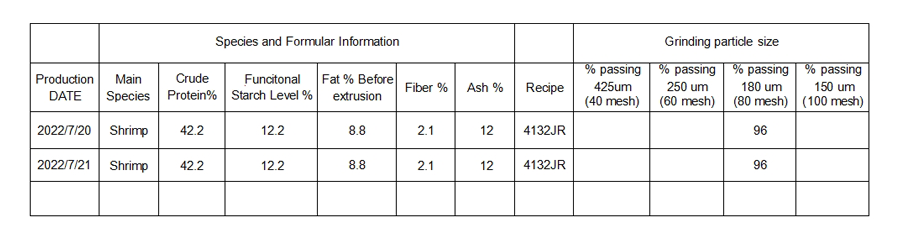

Species and Formular Information
Testing: 2022/07/20
Operation Key Datas

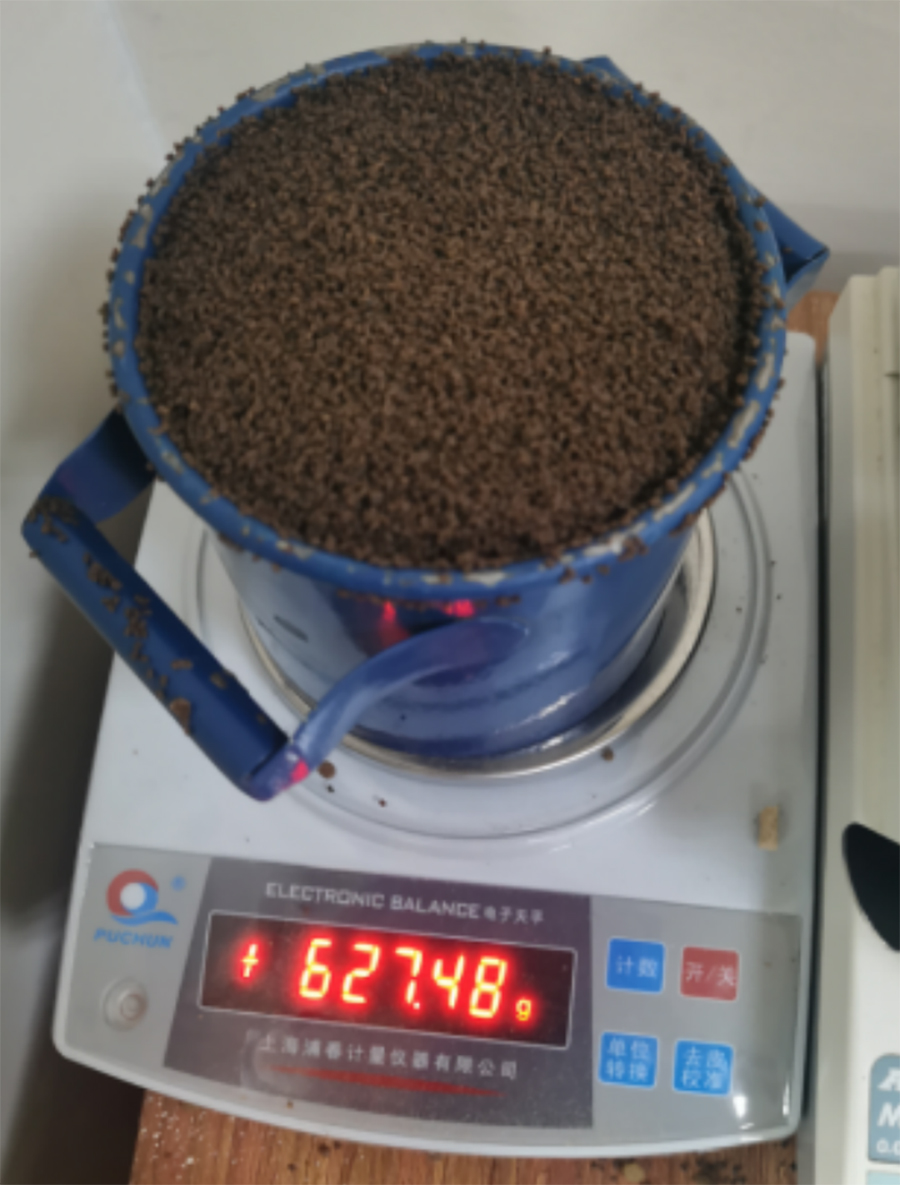

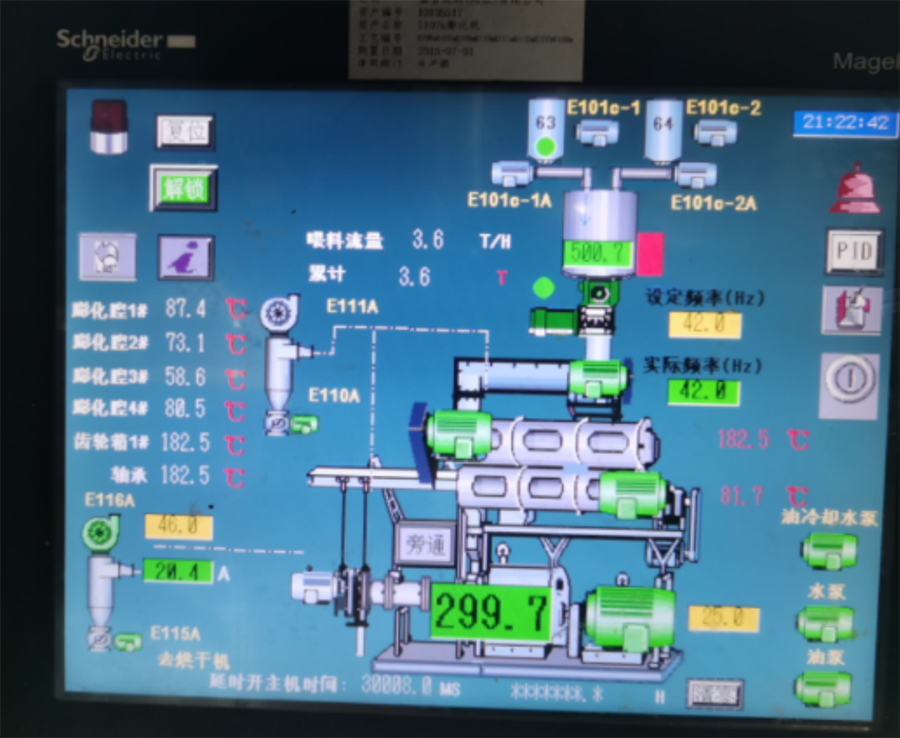

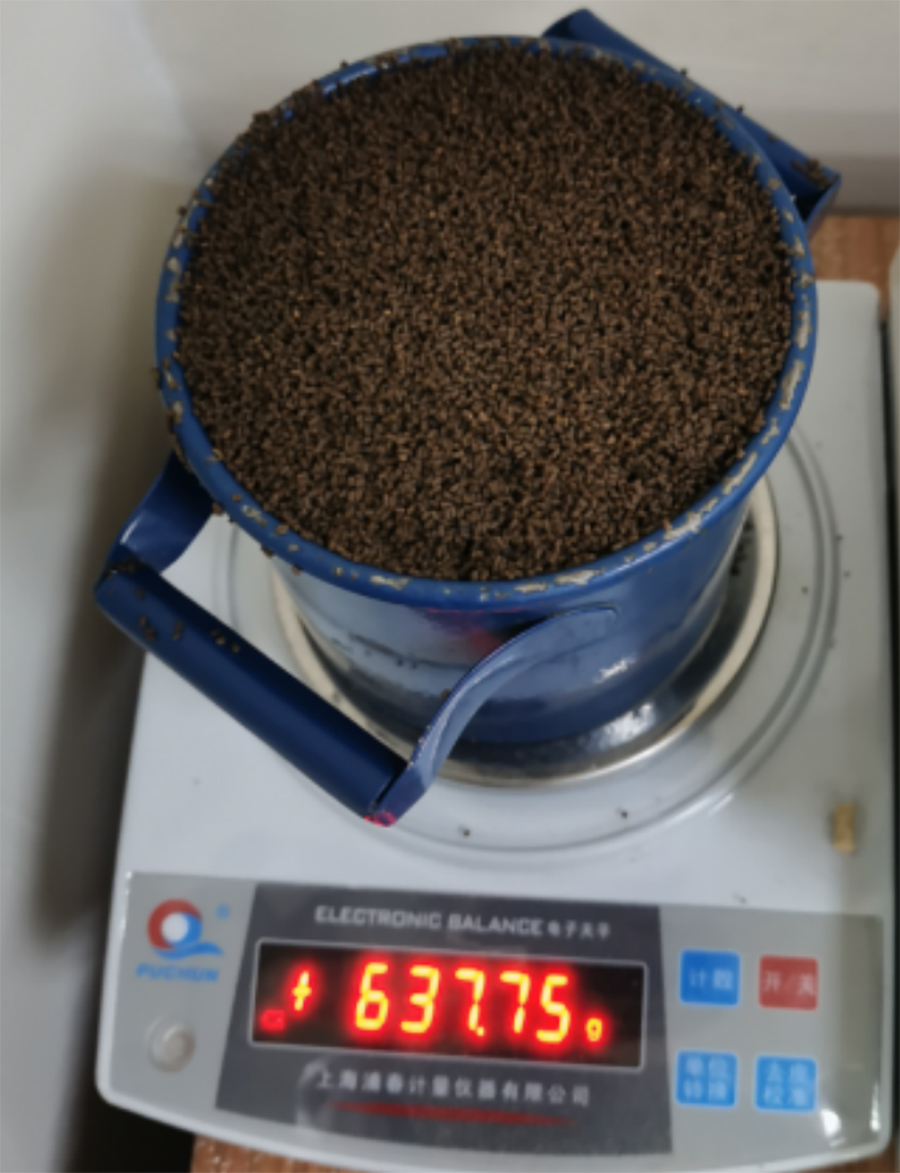

Touch screen & Density after ECS

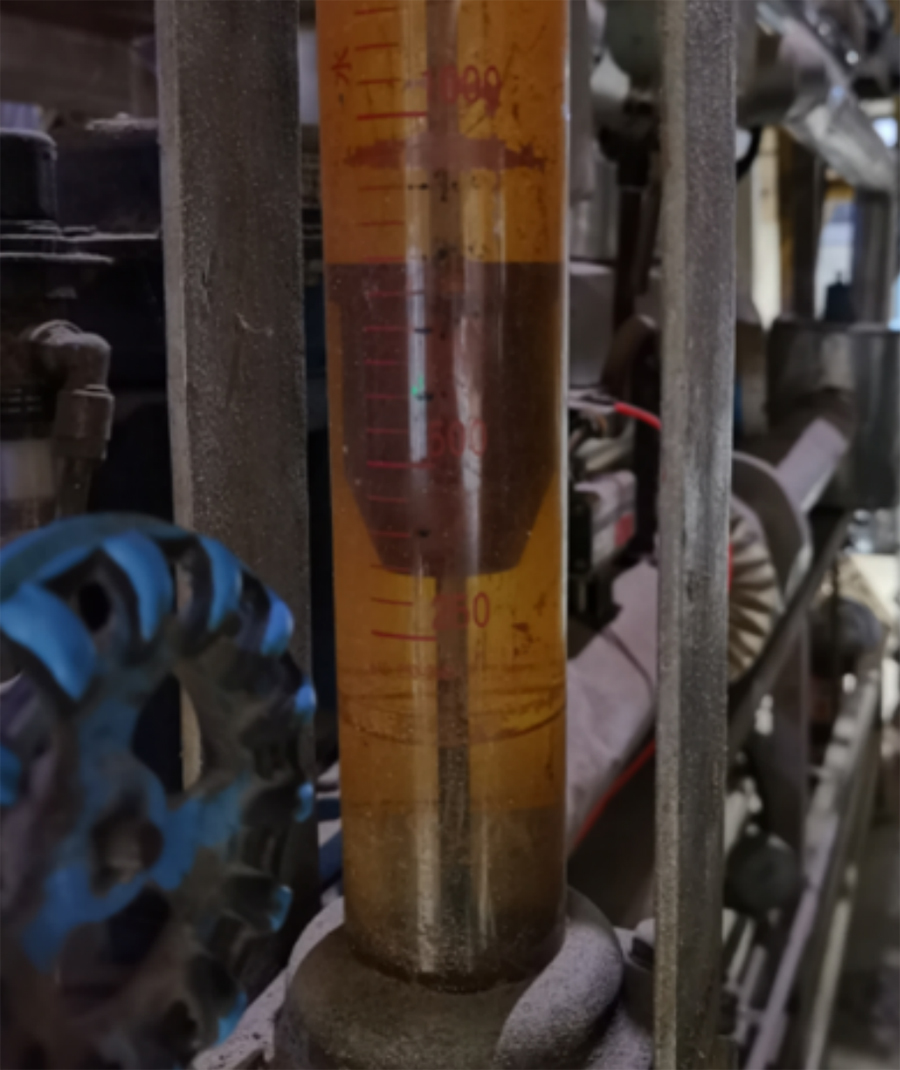

Water adding into conditioner: 950l/h

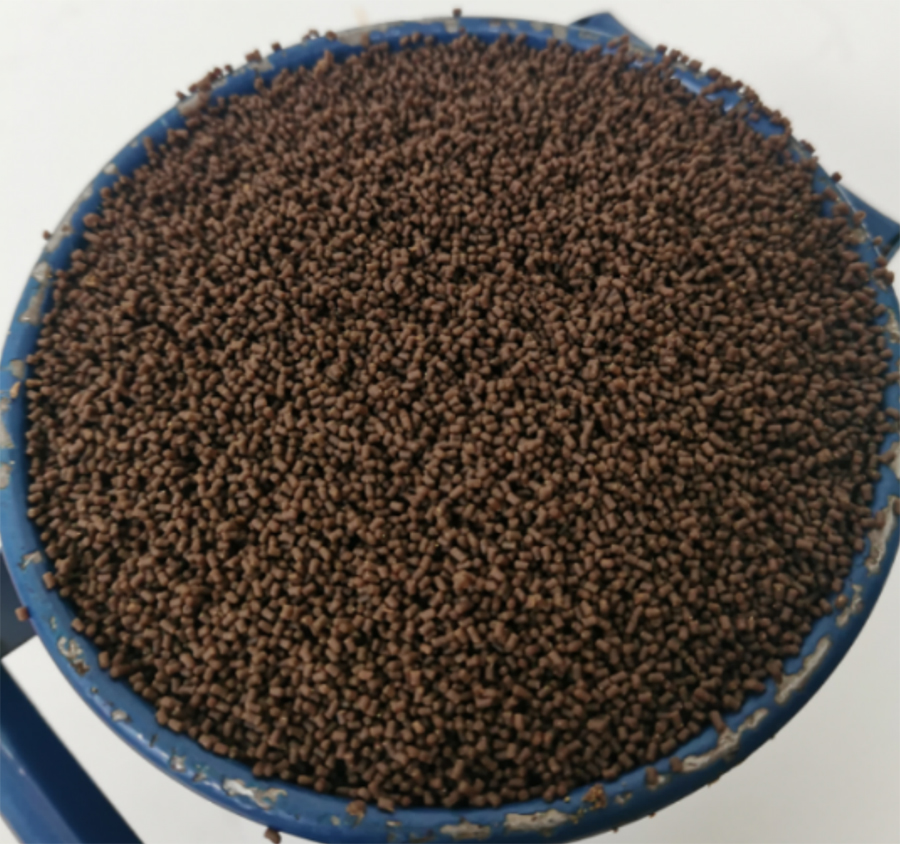

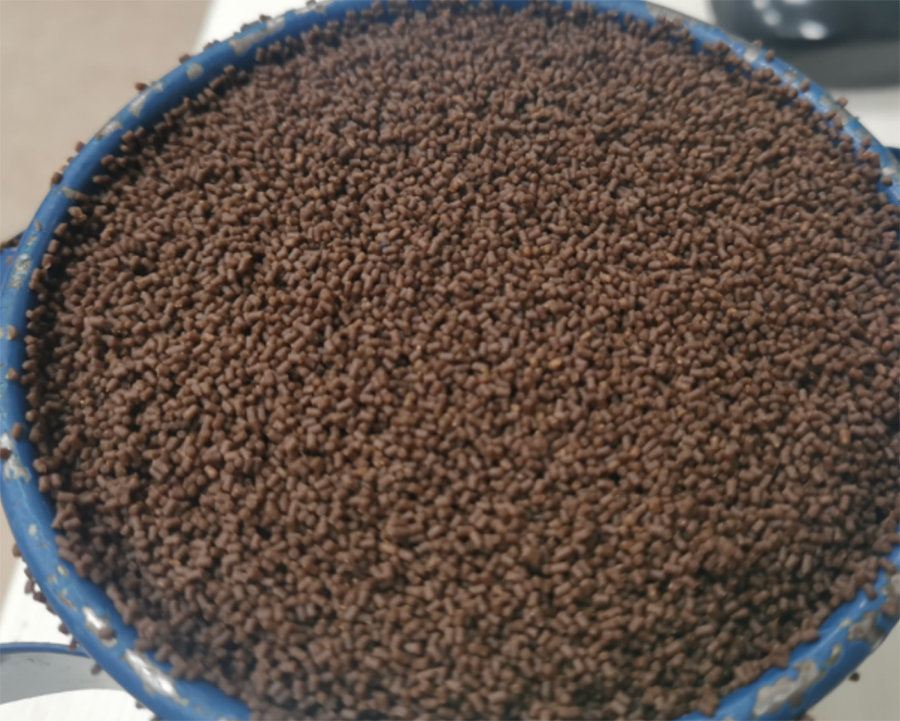

Sample of shrimp feed

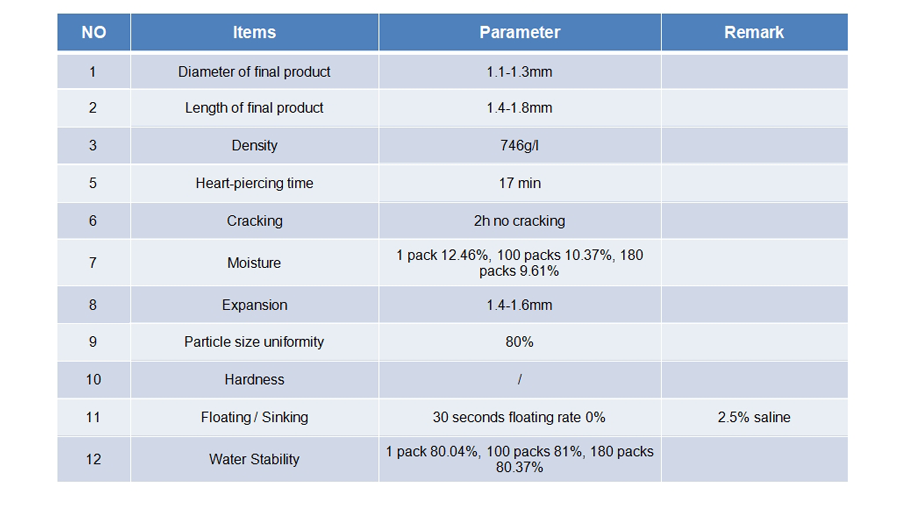

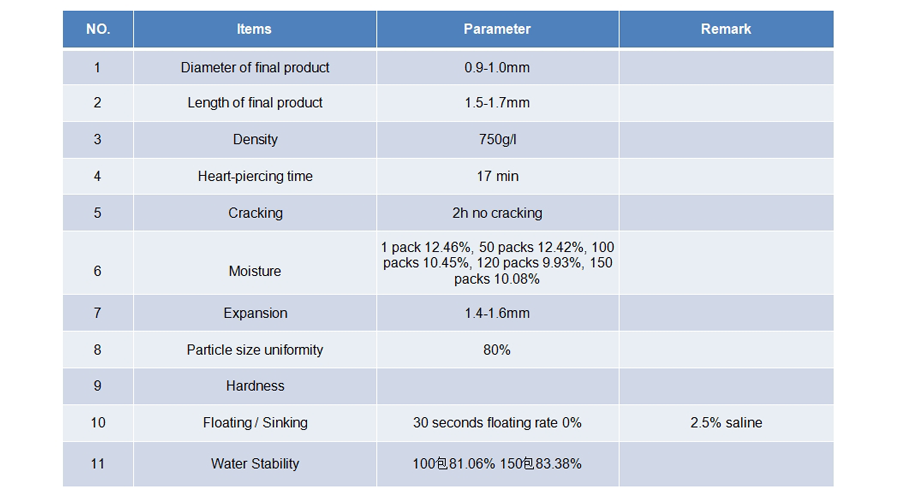

Test data of final product
Testing: 2022/07/21

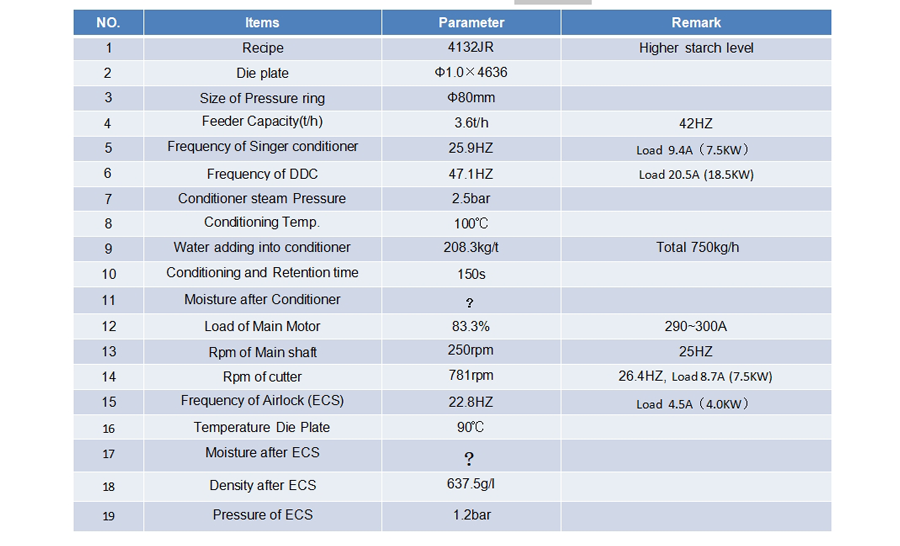

Operation Key Datas
Touch screen & Density after ECS

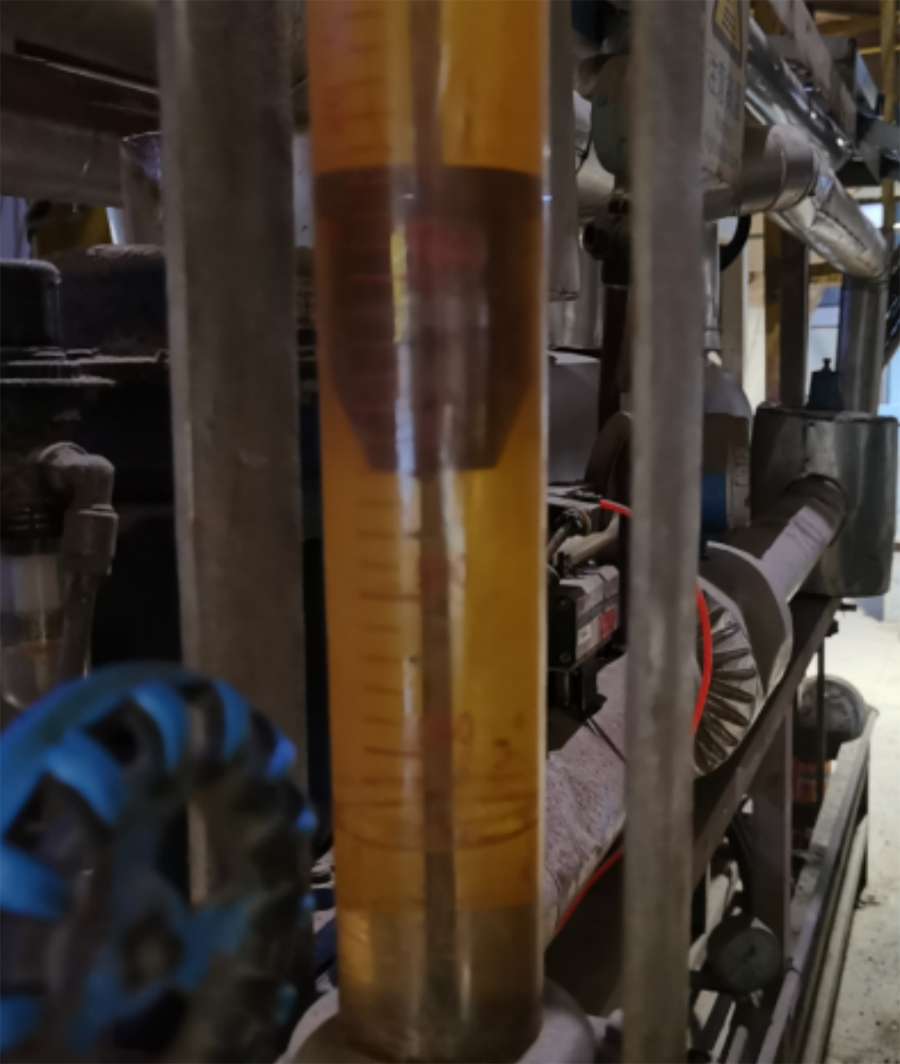

Water adding into conditioner: 750l/h

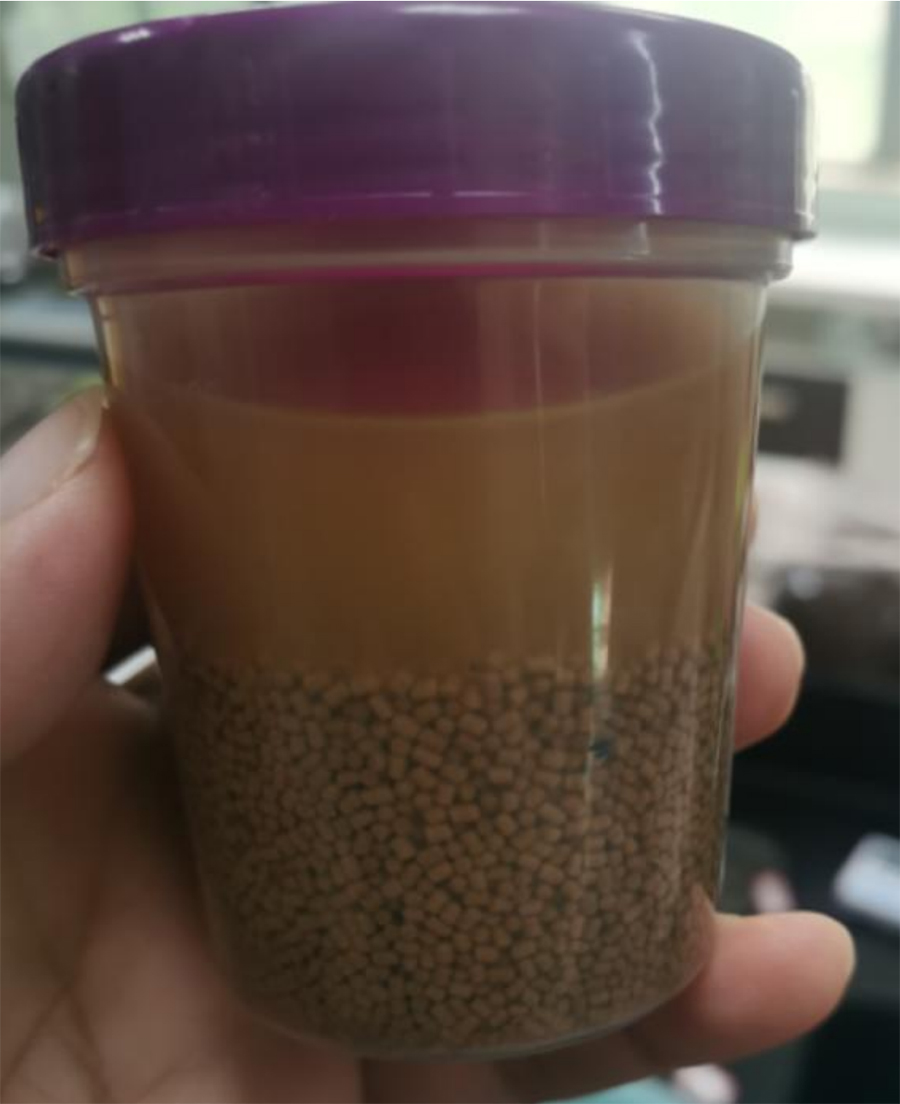

Sample of shrimp feed

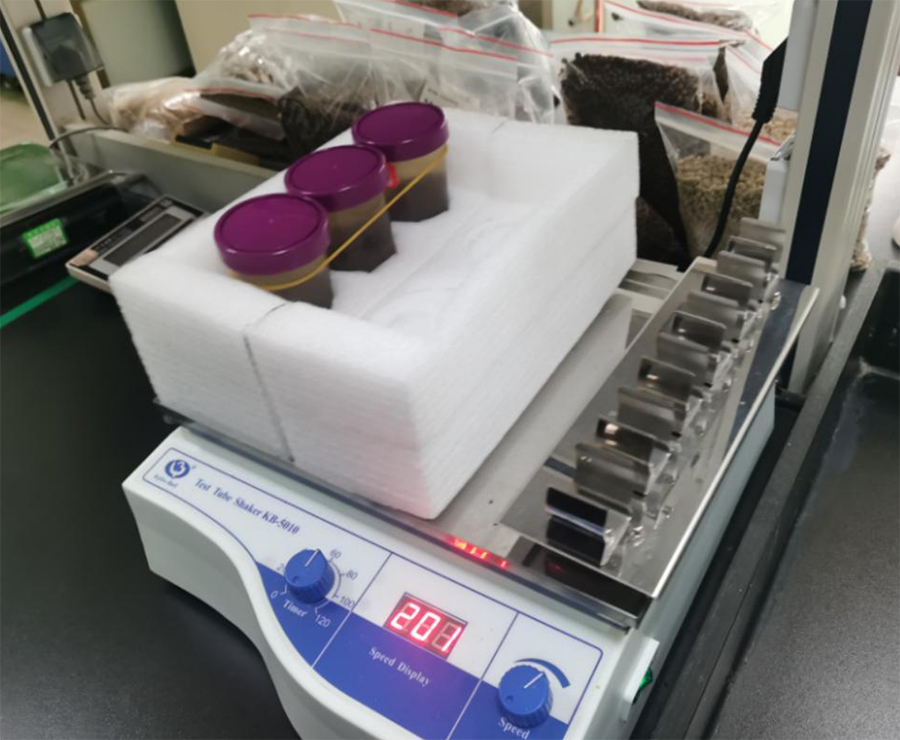

Test data of final product
Suggestions for next improvement
This test mainly improves the conditioning time and conditioning uniformity, and the stability in water has been improved to a certain extent.

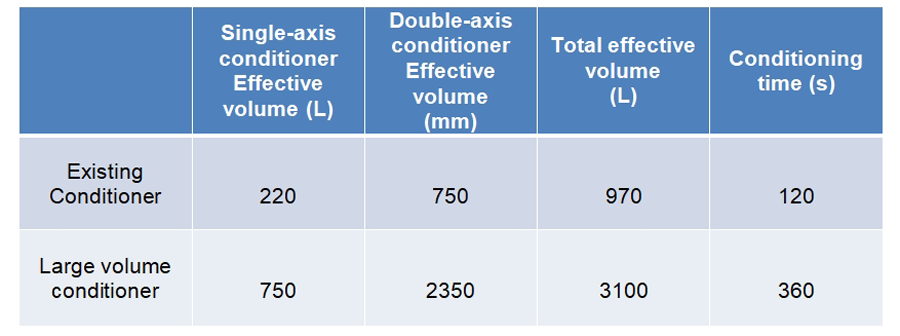

If you need to further improve the stability in water, it is recommended to replace the conditioner with a larger volume.
